MT12 16-Channel ELRS (LBT) Transmitter with ER3C-I Receiver for Surface Models from RadioMaster - HP0157-0067-LBT

Introducing the RadioMaster MT12, a groundbreaking open-source surface radio that sets a new standard in versatility and performance for RC enthusiasts. As the first surface radio officially supported by EdgeTX and ExpressLRS, the MT12 is engineered to handle a wide variety of surface models, from cars, trucks, boats, and more. With its impressive capability to manage up to 16 channels, the MT12 ensures that users have the flexibility necessary for complex control setups. This highly configurable radio is equipped with 10 physical inputs, making it easy to customize and adapt to different applications, whether you’re racing on a track or navigating challenging terrain.

The MT12 is powered by a robust STM32F407VGT6 processor with 1MB Flash memory, which delivers exceptional performance and responsiveness. Preinstalled with the cutting-edge EdgeTX firmware, this controller provides a user-friendly interface that enhances the overall experience for hobbyists. The incorporation of advanced features, such as QC3.0 fast charging, ensures that you spend less time waiting and more time enjoying your favorite activities. Its ergonomic design not only enhances comfort during extended use but also includes an oversized battery compartment that accommodates dual 18650 cells, providing ample power for long sessions. The standard Nano module compartment allows for easy integration of various compatible modules, further enhancing the MT12's capabilities.

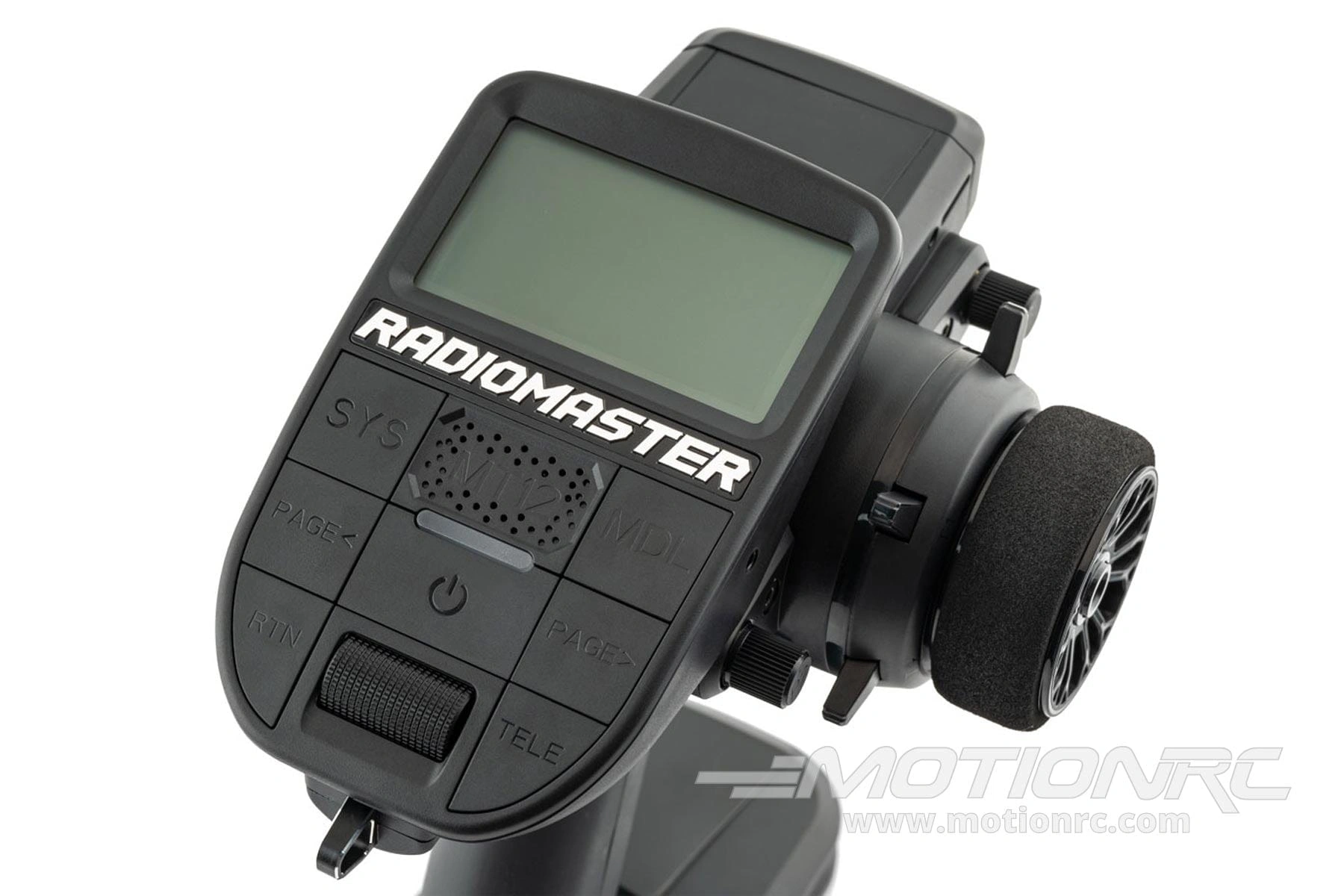

The ExpressLRS version of the MT12 elevates your control experience with ultra-fast response times, ideal for high-stakes racing or long-range adventures. This version supports advanced telemetry features, offering real-time feedback and ensuring that you stay connected to your model at all times. The MT12's intuitive layout includes a high-resolution 128x64 monochrome LCD display, which provides clear visibility of critical information, even in bright conditions. With built-in USB-C charging and the ability to upgrade firmware via USB or SD card, maintaining and optimizing your controller is effortless. The RadioMaster MT12 is not just a radio; it’s a comprehensive control solution designed to empower enthusiasts to take their skills and experiences to the next level.

Note: ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100mW power output).

EdgeTX Firmware Pre-installed with EdgeTX, the MT12 has cutting edge software fit for its class-leading hardware.

Adjustable Wheel Tension Wheel tension can be quickly and easily adjusted to suit your preference.

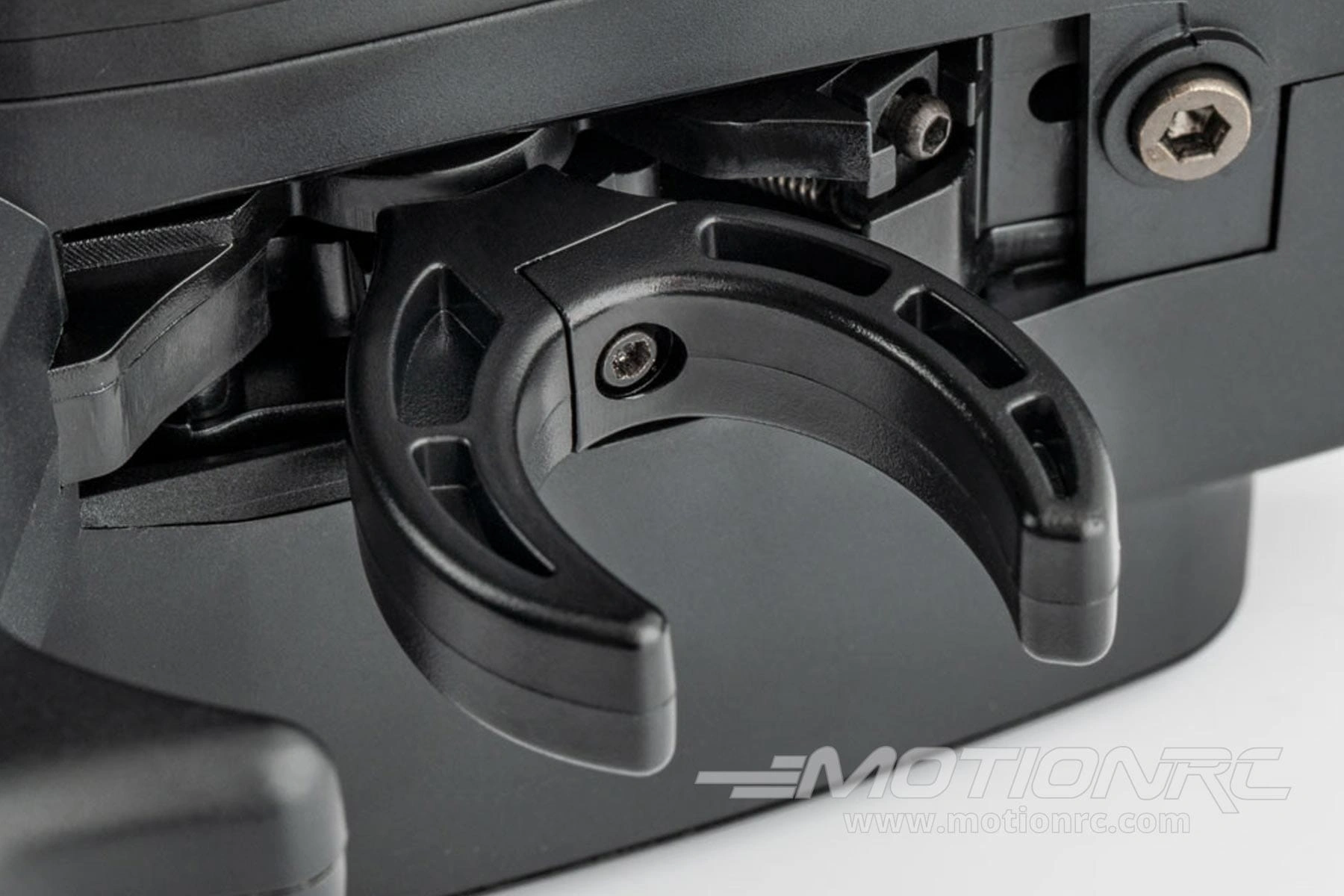

Adjustable Trigger Trigger position and tension can be fine-tuned to suit your driving style.

Ball Bearing Supported Trigger/Wheel and Hall Sensors The steering wheel and trigger both feature high-precision ball bearings and non-contact hall sensors providing precise centering and control.

10 Physical Inputs A wide array of inputs allows for the ultimate level of control over your model.

External Nano Module Adapter Supports Ranger Nano/RM 4in1/TBS Crossfire Nano (modules sold separately).

QC3.0 USB Fast Charging Quickly and conveniently recharge your radio via USB-C.

Multiple Power Options Supports multiple power options including 2S LiPo batteries and 18650 cells (batteries sold separately).

Features:

• Built-in ExpressLRS module for enhanced performance
• Robust STM32F407VGT6 chip with 1MB of Flash memory
• EdgeTX firmware preinstalled for a seamless user experience
• QC3.0 fast charging capability with up to 2.0A support
• Compact design that ensures optimal ergonomics and comfort
• Spacious battery compartment for two 18650 cells or a 2S 7.4V 5000mAh battery pack (batteries not included)
• Standard Nano module bay for easy module integration
• RadioMaster standardized button layout for intuitive operation
• Rotatable antenna for flexible positioning
• Customizable base switches or a four-way joystick for personalized control

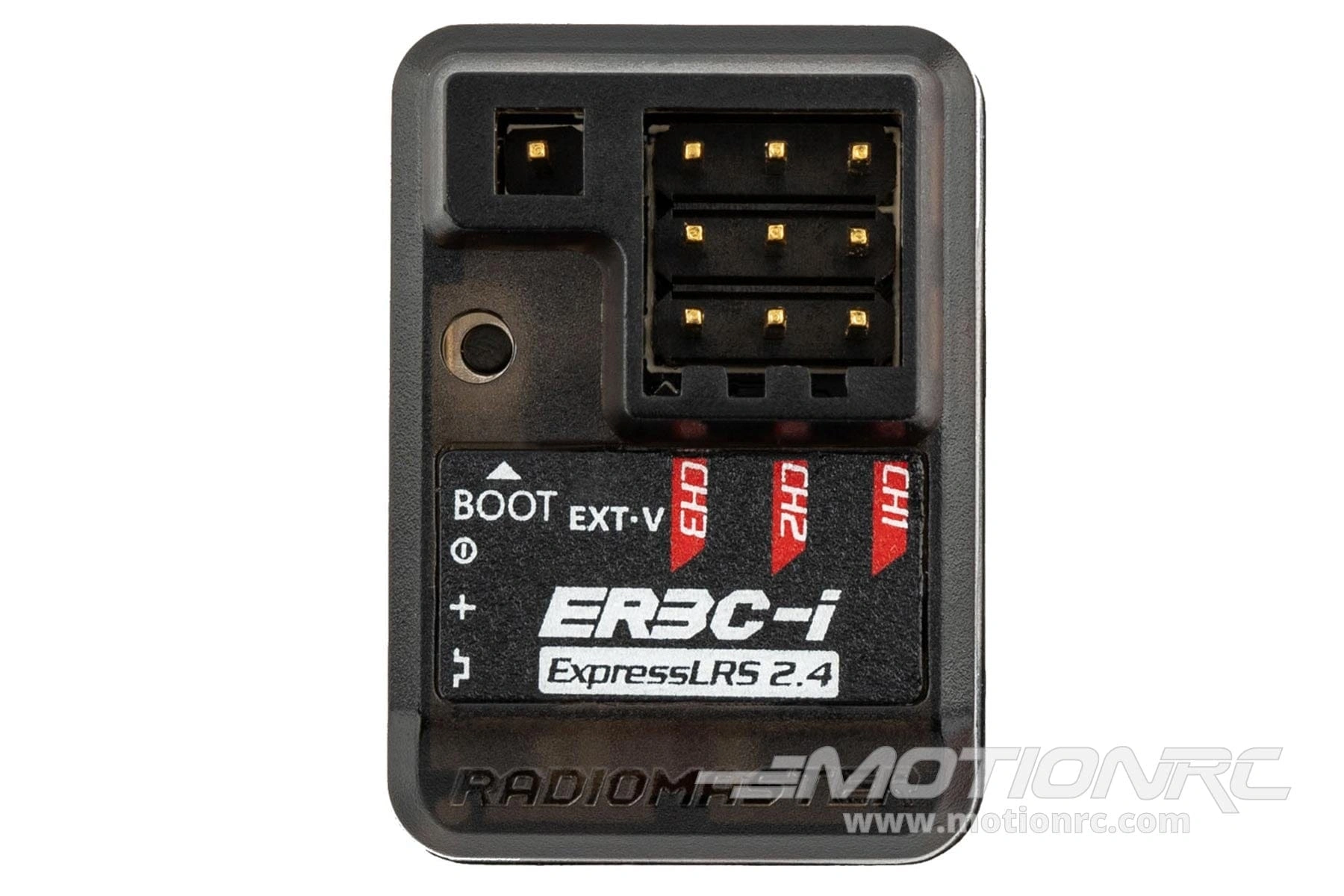

• Includes ER3Ci 3-Channel ELRS PWM Receiver

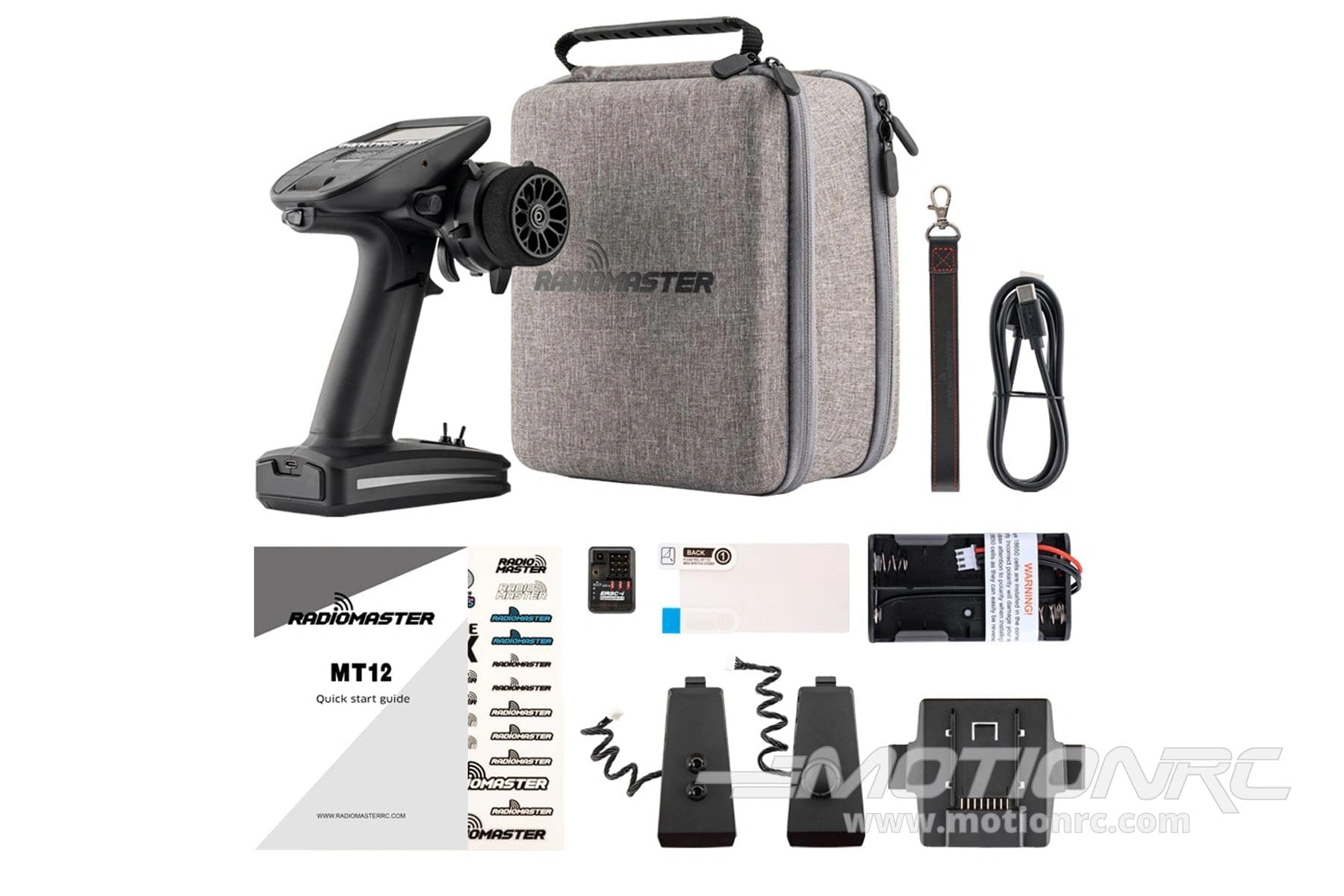

Includes:

• RadioMaster MT12 16-Channel ELRS (LBT) Transmitter
• RadioMaster ER3Ci 3-Channel ELRS (LBT) PWM Receiver

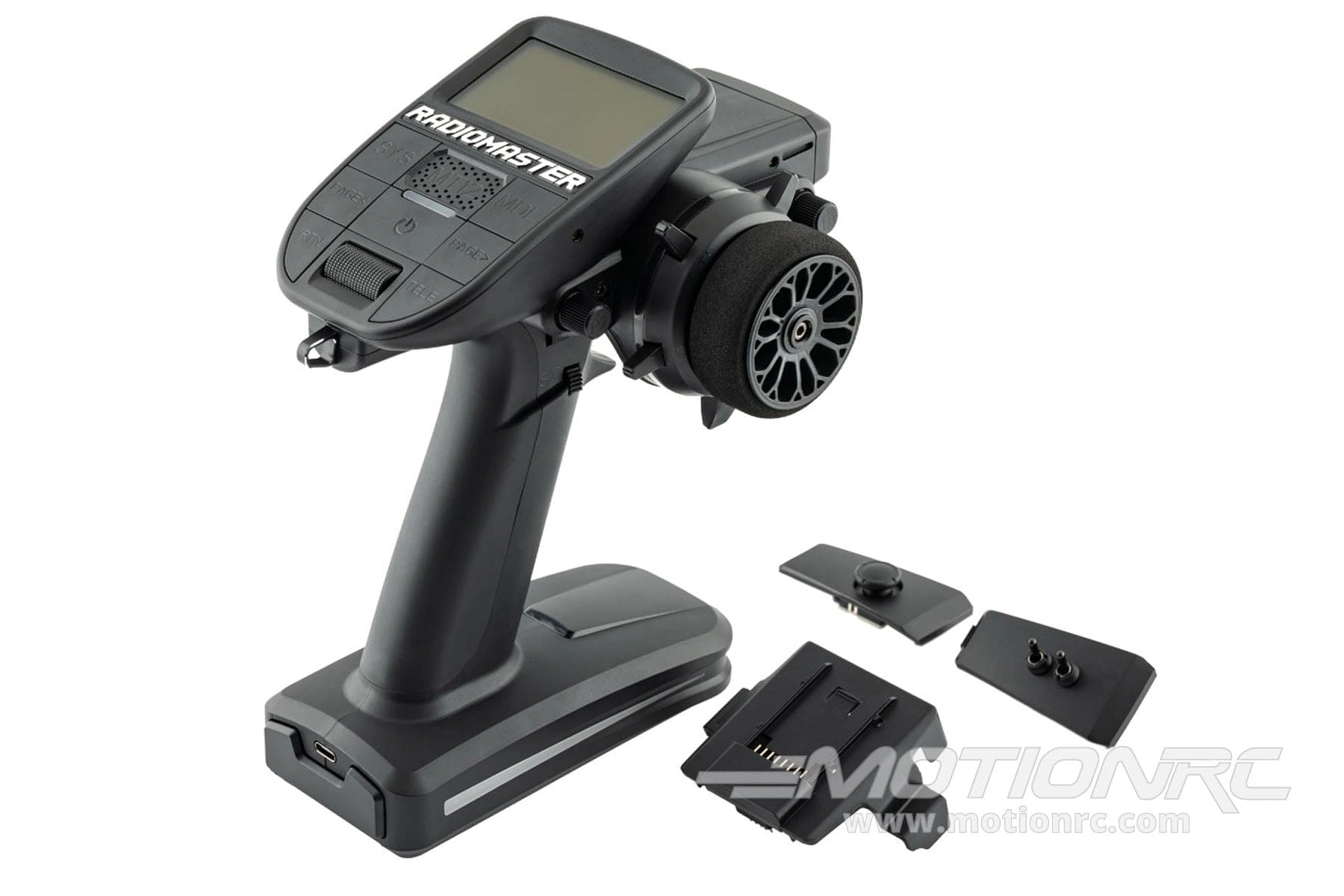

• Dual switch expansion module
• 4 Way joystick expansion module
• Nano adapter
• USB-C cable
• Leather lanyard
• Custom RadioMaster signature carry case
• 18650 battery tray
• Screen protector
• Stickers
• Manual

Requires:

• 2x 3.7V 18650 Li-ion batteries - we recommend HP0157-18650-3200
  or
• 2S 7.4V LiPo with XT30 connector - we recommend HP0157-BATT-5A2S
