Unleash the Beast Within: MicroBeast Ultra Flybarless Powerhouse!

Alright, listen up, buttercup! This ain't just some *thing*, this is a freakin' experience. Picture this: you, bathed in golden hour light, holding this bad boy, feeling the raw power, the pure awesomeness coursing through your veins. It's rugged, it's refined, it's got that certain *je ne sais quoi* that screams "I've arrived." Forget blending in, you were born to stand out. This is your secret weapon, your confidence booster, your ticket to the good life. Don't just buy it, *own* it. Trust me, you deserve this. You *need* this. Get it now, before someone else does. Seriously, what are you waiting for?!

$174.16 $193.51

num:

description

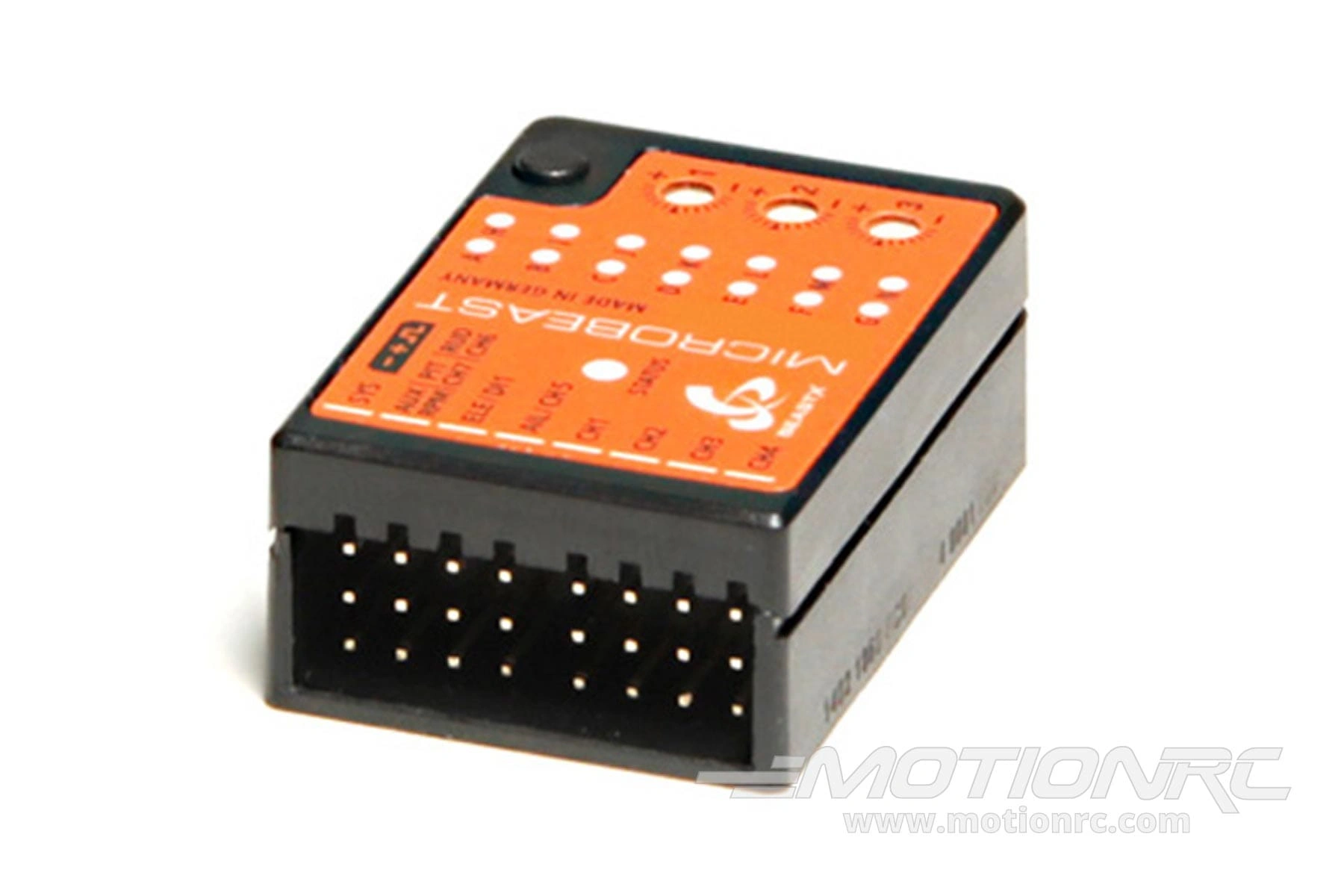

MicroBeast Ultra Flybarless System from BeastX - BXM76542

MicroBeast Ultra is a 3-axis control system that is the result of over ten years of research and development for flybarless RC model helicopters. It combines all the properties of the previously released BeastX systems and is ready for the future with a modern ARM Cortex MPU, providing even more computing power and storage capacity. MEMS sensors of the latest generation measure the aircrafts rotational movement with unprecedented precision and transmit the data digitally and in real time to the system. The housing made of plastic composite material keeps the weight of MicroBeast Ultra sensationally low.

The sophisticated setup can quickly be done everywhere and no expensive programming box or computer is needed. So many settings can also be changed simply and easily at the flying field. Further options are available with the optional USB2SYS interface and the StudioX software package. MicroBeast Ultra can be kept up to date by using the update functionality and advanced pilot can thus customize the unit specifically to their needs.

The included firmware version is 5.1 Basic. If required, the device can be upgraded (subject to a charge) to include additional useful functions. A telemetry connection is available in which the MicroBeast Ultra acts as an interface between the various sensor systems and remote control standards. AttitudeControl offers additional position stabilization and rescue of the model for flight and beginner training. The bank switching allows different parameter sets.

Features:

Servo outputs:

3 swash plate servos

Maximum adjustable servo update rate: 200Hz
Swash plate mixing types: mCCPM, 90°, 120°, 135°, 140°; as well es freely configurable mixer with StudioX, i.e. for swash phasing

1 rudder servo

Supports mostly all types of servos with 1520µs, 960µs or 760µs
Maximum adjustable servo update rate: 560Hz

When using a SingleLine receiver additionally:

throttle output, auxiliary output for landing gear, position lights or else

Signal inputs:

Standard receiver with single servo output channels
SingleLine receivers: Spektrum DSM2/DSMX remote satellite*, JR RJ01 DMSS remote satellite*, Futaba S.Bus, SRXL (JR XBUS, Spektrum SRXL, SUMD, M-Link, BEASTX SRXL, JETI UDI), SPPM
Sensor board (i. e. for connecting an rpm sensor for internal electric or nitro RPM governor function).
