Unleash the Eagle A3: Super 4 Airplane Gyro - Standard Edition. Fly Smarter, Soar Higher, Programming Card Included!

Alright partner, hold your horses You're lookin' at somethin' special, somethin' with a story to tell. This ain't just a thing, it's a vibe. Imagine that perfect sunset, that feeling of wind in your hair, the freedom of the open road. This right here? It's a piece of that. It's got that vintage charm, that rugged edge, and the kind of quality that’ll make you wanna pass it down to the next generation. Get ready to turn some heads, friend. This is the good stuff. Don't just buy it, *live* it.

$50.62 $56.24

num:

description

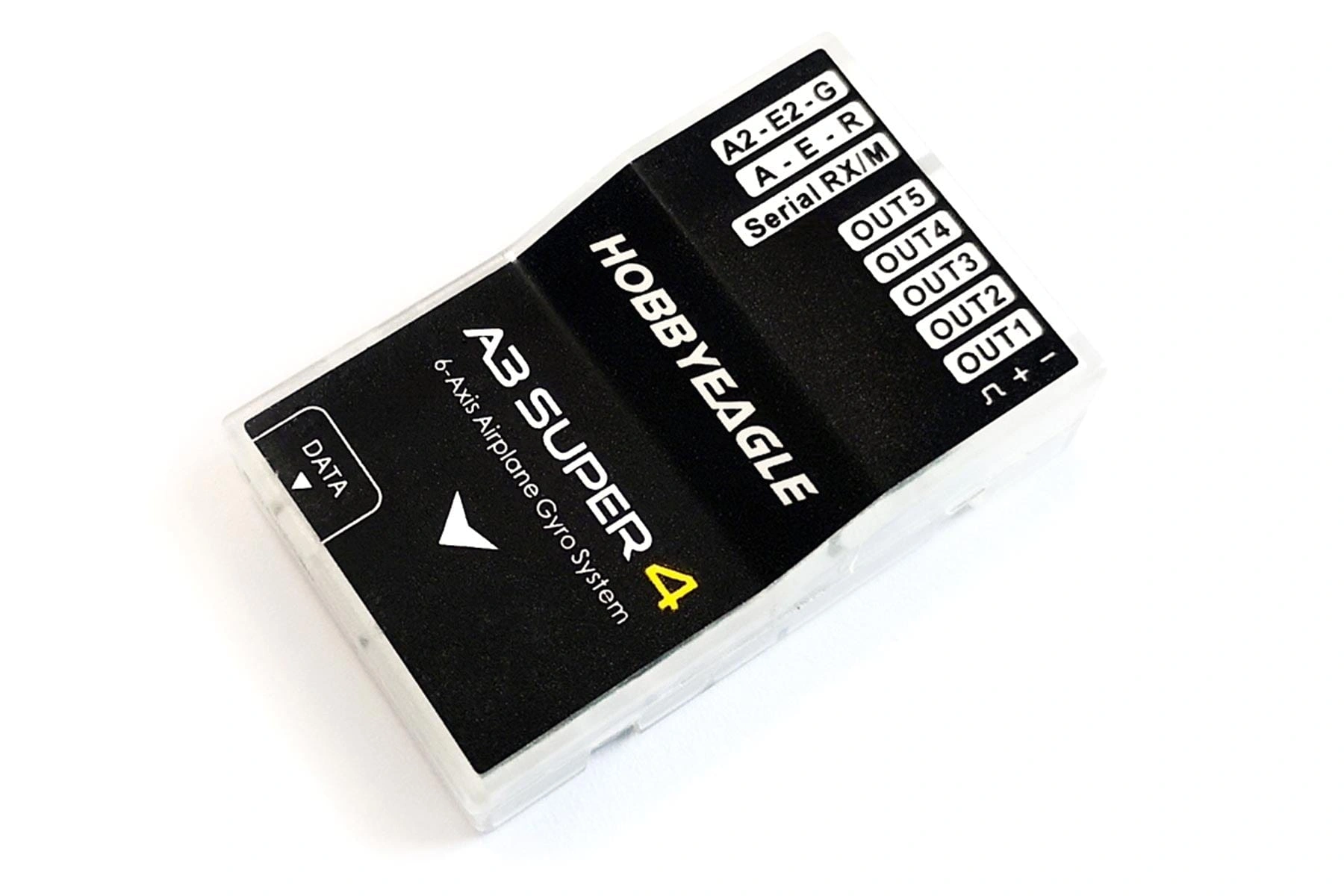

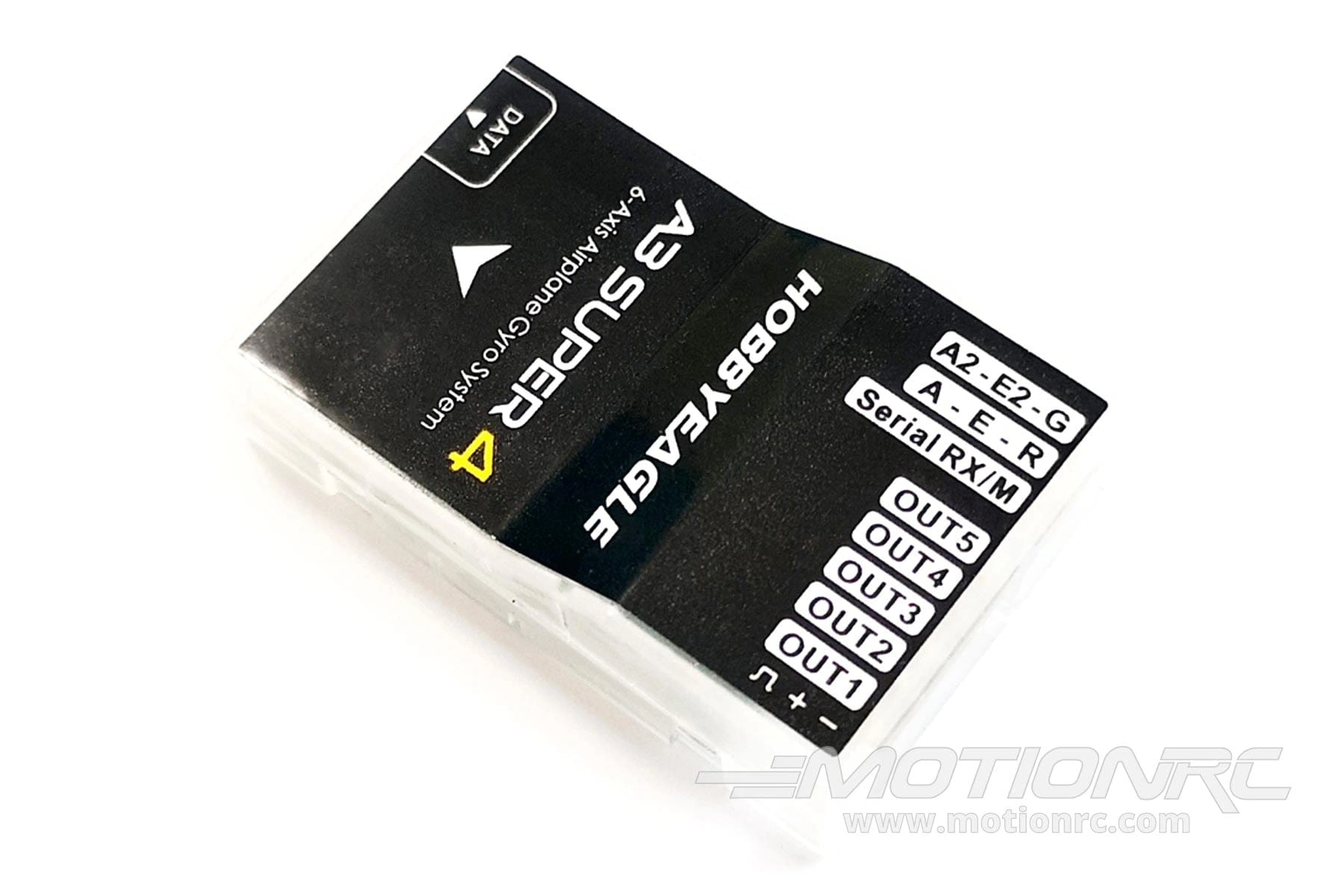

A3 Super 4 Airplane Gyro Standard Edition with Programming Card from HobbyEagle - HEA3S4-FS

A3 Super 4 is a high-performance and functional 6-axis gyro and stabilizer designed for R/C airplanes. The hardware has been improved yet again based on the successful previous generation. Multi-protocol serial digital receiver support and customizable output channels added to make the gyro more user-friendly and reliable.

Why use an airplane gyro? Gyros (also called flight stabilizers) help keep your airplane stable during take-off, flight maneuvers, and landings which can be helpful during windy days or when learning how to fly RC planes. Gyros also help you master aerobatic maneuvers like knife edges and hovering. Once thought to be for beginners only, gyros are now common in all classes of aircraft and are utilized by all levels of flyers. Gyros are great for learning, they let pilots practice advanced aerobatics, they give you piece of mind in less than ideal flight conditions, and they can often help you avoid costly crash damage.

Important: The A3 Super 4 is an advanced flight stabilizer. You must have a Windows PC, know how to install drivers, and have a working knowledge of Windows applications in order to program this gyro. If you are interested in a gyro which does not require a computer for setup and programming, please consider the A3 Lite or A3 Pro V2.

Features:

Compatible with most standard PWM receivers, PPM and multi-protocol digital serial receivers
32-bit MCU, high-precision 6-axis MEMS sensor, improved hardware platform and new firmware solution provide more reliable performance
6 flight modes: GYRO-OFF, NORMAL, LOCK, ANGLE, LEVEL, and HOVER mode
Supports standard fixed-wing, flying-wing (delta-wing), and V-Tail
Customizable output channels and 2 pass-through auxiliary channels
Remote master gain
Upgradable firmware and programming card supported

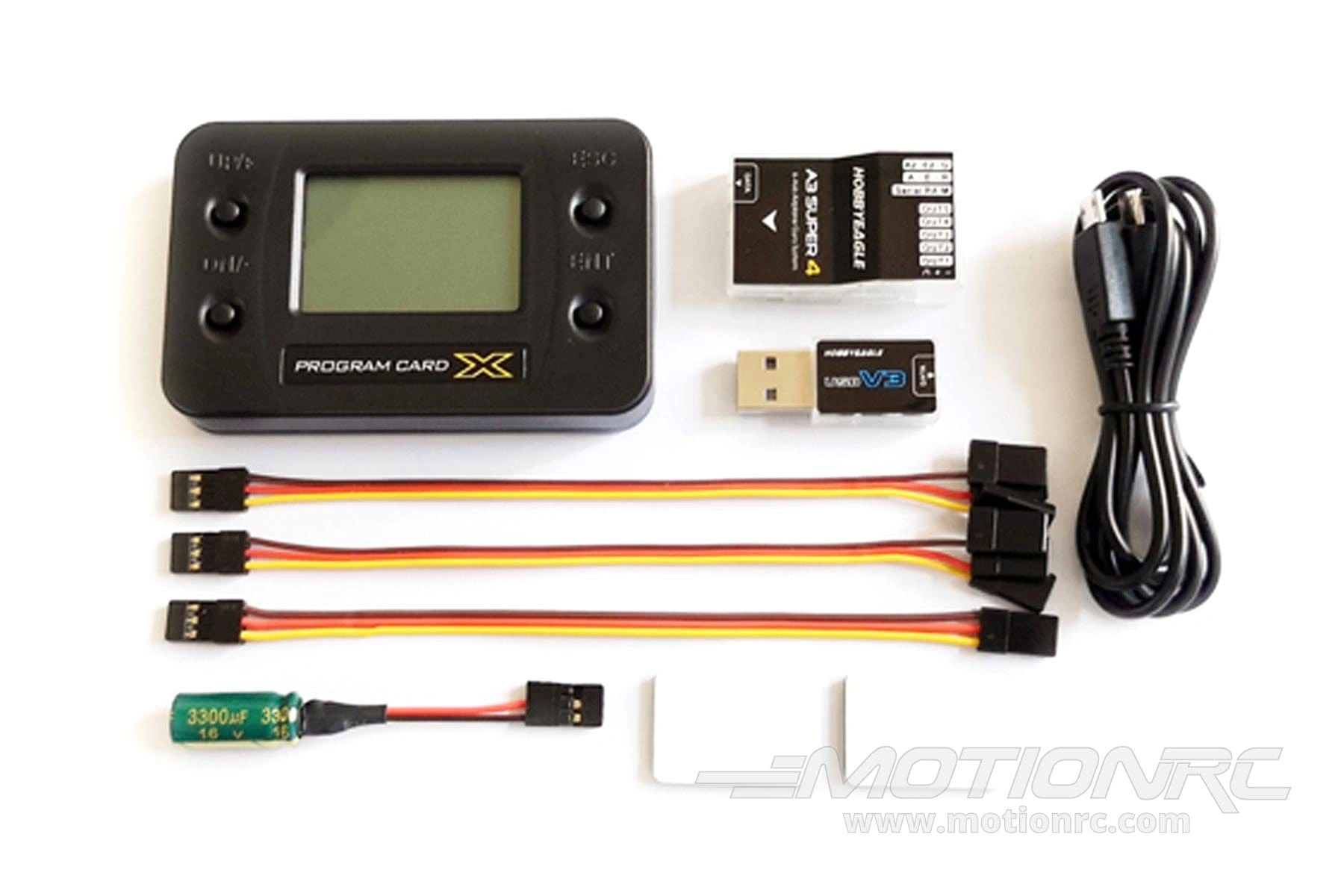

Includes:

Eagle A3 Super 4 Airplane Gyro Standard Edition
Programming card
USB adapter and cable
16V EZ-Plug capacitor to help maintain a secure voltage level during flight
3M foam mounting tape
3 x male-to-male servo wires to connect to your receiver

Specifications:

Main Controller: 32-bit MCU
Sensor: High-precision MEMS 6-axis
Gyroscope Scale Range: ±2000 dps
Accelerometer Scale Range: ±4g
PWM: 800 ~ 2220uS, Neutral 1500/1520uS, 50Hz ~ 333Hz
Input Voltage: 4.8V ~ 8.4V
Operating Temperature: -10 ℃ ~ 50 ℃
Size: 43×27×14mm
Weight: 10g (excluding wires)

IMPORTANT - Please Read This Carefully

Proper setup of the Hobby Eagle Gyro is crucial. Read the gyro instruction manual completely before attempting to fly your aircraft. Failure to follow setup instructions can result in loss of control and inevitable damage to your aircraft.
Ensure the gyro is installed in the proper orientation (see manual) and is mounted to a hard surface near the aircraft's CG point.
When you first plug in your aircraft battery DO NOT move your aircraft for at least 10 seconds to allow the gyro to perform self-calibration.
It is crucial to verify that the gyro is moving the control surfaces in the correct direction BEFORE attempting to fly your aircraft. Failure to do so could result in loss of control during flight.
Setup one of your gyro control switches (3 position switch on your radio) to activate Gyro Disable. This safety feature will allow you turn off the gyro if you encounter any issues during flight.
ANY warranty claim for Hobby Eagle gyros applies to the gyro only, not the aircraft in which the gyro was installed.

Standard PWM Receiver Connection

When using a standard PWM receiver, A3 Super 4 has 7 input channels in which at least one channel should be connected to the receiver in Aileron (A), Elevator (E) and Rudder (R), or the gyro will enter the receiver timeout mode (Red Slow Flashing). [Serial RX/M] is used for flight mode switching, use a 3-position switch of the transmitter to switch the flight mode during flight. [G] is used for remote master gain control, a slide lever or a switch of the transmitter can be used to tune or change the master gain during flight. Connect the ESC or the throttle servo to the receiver directly without passing through the gyro.

Single-line Receiver Connection

A3 Super 4 supports PPM and multi-protocol digital serial receivers which allows you to connect the receiver to the gyro with one single wire on the slot [Serial RX/M]. When using single-line receivers, 2 auxiliary pass-through channels (AUX1 and AUX2) are available which can be used to output the expected channels of the receiver directly. By default, AUX1 is always assigned to Throttle and applies to OUT5, while AUX2 is disabled. Depending upon the receiver type selected, The gyro uses the preset channel assignment to recognize the channels from the receiver. Refer to the table below and check if your radio transmits the channels in the correct order. After each time you have changed the receiver type the current channel settings will be reset to the default. Choose 'None' for those channels you do not use.
